Industrial Pump Seal

AE 7N

AE X

Pressure: ≤1MPa Speed: ≤5 m/s Temperature: -30℃~+200℃ Rotary Ring (SiC/TC) Stationary Ring (SiC / TC) O-Ring (NBR/EPDM/VITON) Spring (SUS304/SUS316) Tension Spring (SUS321) Stationary Seat (SUS304/SUS316) Spring Cover (Bakelite/Alumina) Retainer (Bakelite/Alumina)

We are here to solve your problems professionally
Contact Now

Contact
  • AE 7N
AE X

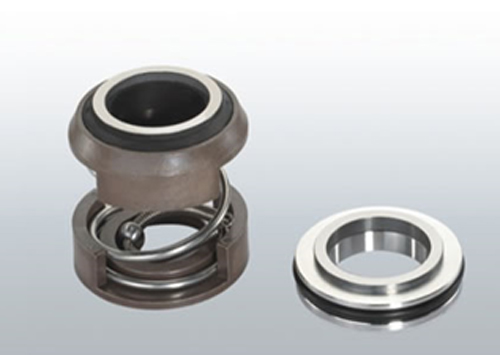

Our Industrial Pump Seal model AE X .

Operating Limits
Pressure: ≤1MPa
Speed: ≤5 m/s
Temperature: -30℃~+200℃

Rotary Ring (SiC/TC)

Stationary Ring (SiC / TC)

O-Ring (NBR/EPDM/VITON)

Spring (SUS304/SUS316)

Tension Spring (SUS321)

Stationary Seat (SUS304/SUS316)

Spring Cover (Bakelite/Alumina)

Retainer (Bakelite/Alumina)
